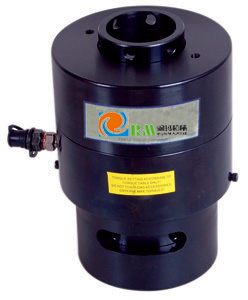

RMSL型彈簧(負載)復位液壓螺栓拉伸器
技術參數：
1、彈簧/負載自動復位
2、過行程保護
3、專用性強，一種型號可適用多種規格螺栓
4、擁有其他形式拉伸器的各項優點
5、扭矩范圍:155-4986KN
6、適用螺栓:M20-M140
7、最大工作壓力:150Mpa（1500Bar
2、過行程保護
3、專用性強，一種型號可適用多種規格螺栓
4、擁有其他形式拉伸器的各項優點
5、扭矩范圍:155-4986KN
6、適用螺栓:M20-M140
7、最大工作壓力:150Mpa（1500Bar
|
型號
|
適用螺栓
(mm) |
最大負載(KN)
|
尺寸
|
重量Kg
|
|||||
|
A
|
B
|
C
|
D
|
E
|
F
|
||||
|
HF15-0
|
M20
|
155
|
66.0
|
25.0
|
62.0
|
34.5
|
91.5
|
129.0
|
1.3
|
|
M22
|
66.0
|
25.0
|
62.0
|
34.5
|
91.5
|
132.0
|
|||
|
HF15-l
|
M24
|
282.7
|
85.0
|
31.9
|
68.0
|
43.0
|
123.5
|
167.0
|
3.5
|
|
HF15-2
|
M24
|
486.7
|
109.0
|
30.0
|
75.0
|
38.0
|
128.6
|
172.0
|
5.5
|
|
M27
|
|||||||||
|
M30
|
30.2
|
80.0
|
41.0
|
131.6
|
180.0
|
||||
|
M33
|
36.9
|
88.0
|
44.0
|
134.6
|
186.0
|
||||
|
M36
|
38.3
|
96.0
|
47.0
|
137.6
|
192.0
|
||||
|
HF15-3
|
M33
|
661
|
126.0
|
36.9
|
88.0
|
44.0
|
137.0
|
188.0
|
7.0
|
|
M36
|
38.3
|
96.0
|
47.0
|
140，0
|
194.5
|
||||
|
M39
|
42.0
|
96.0
|
50.4
|
143.4
|
196.0
|
||||
|
M42
|
41.1
|
108.0
|
53.5
|
146.5
|
207.5
|
||||
|
HF15-4
|
M39
|
1048.6
|
147.0
|
42.0
|
113.0
|
50.0
|
149.0
|
207.0
|
10.0
|
|
M42
|
45.5
|
3.0
|
53.5
|
152.5
|
213.5
|
||||
|
M45
|
52.1
|
118.0
|
57.0
|
156.0
|
220.0
|
||||
|
M48
|
51.0
|
4.0
|
60.0
|
159.0
|
226.0
|
||||
|
HF15-5
|
M52
|
1413.7
|
174.0
|
52.0
|
32.0
|
63.0
|
163.0
|
235.0
|
15.0
|
|
M56
|
58.0
|
38.0
|
69.5
|
169.0
|
247.0
|
||||
|
HF15-6
|
M56
|
1590.4
|
188.0
|
58.0
|
|
69.5
|
169.4
|
249.0
|
17.0
|
|
M60
|
|||||||||
|
M64
|
63.2
|
53.0
|
76.0
|
175.0
|
262.0
|
||||
|
M68
|
76.0
|
64.0
|
82.0
|
181.9
|
275.0
|
||||
|
HF15-7
|
M72
|
2061.6
|
216.0
|
85.0
|
57.0
|
82.0
|
182.0
|
275.0
|
26.0
|
|
M76
|
80.0
|
80.0
|
89.0
|
189.0
|
288.0
|
||||
|
HF15-8
|
M76
|
2544.7
|
247.0
|
80.0
|
80.0
|
89.0
|
192.5
|
291.5
|
29.5
|
|
M80
|
|||||||||
|
M85
|
95.0
|
190.0
|
95.0
|
198.5
|
303.5
|
||||
|
M90
|
102.5
|
205.0
|
101.0
|
204.5
|
316.5
|
||||
|
HF15-9
|
M95
|
3325.1
|
273.0
|
93.6
|
200.0
|
107.0
|
211.0
|
330.0
|
38.0
|
|
M100
|
103.0
|
210.0
|
114.0
|
218.0
|
345.0
|
||||
|
HF15-l0
|
M105
|
3834
|
308.0
|
112.0
|
225.0
|
120.0
|
228.0
|
365.0
|
49.0
|
|
M110
|
|||||||||
|
M115
|
|||||||||
